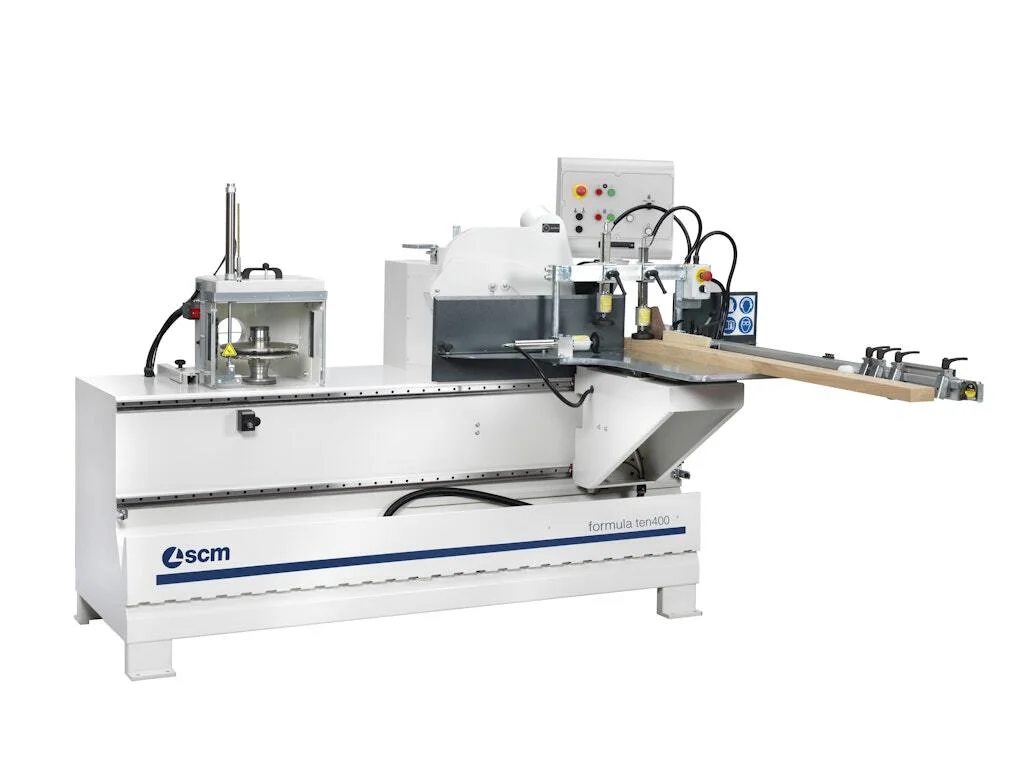

SCM Formula ten400 Tenoner

“New” SCM Formula ten400 Tenoner

Specifications :

Spindle moulder unit

Max. tool diameter – 360mm

Spindle diameter – 40/50mm

Tool rotating speed – 3600rpm

Motor power – 7,5 kW

Circular saw unit

Max. blade diameter – 400mm

Max. cutting height – 120mm

Blade rotating speed – 2800rpm

Number of stops on revolver – 4

Selfbraking motor power – 3 kW

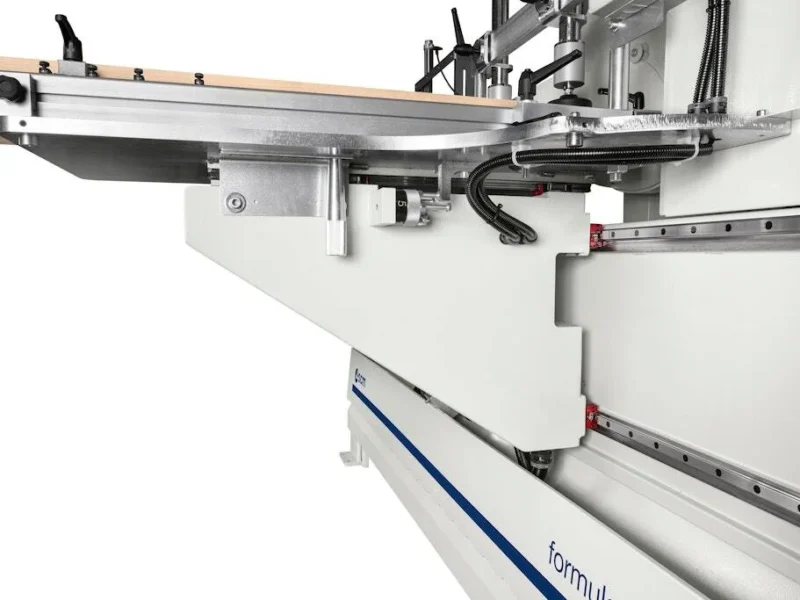

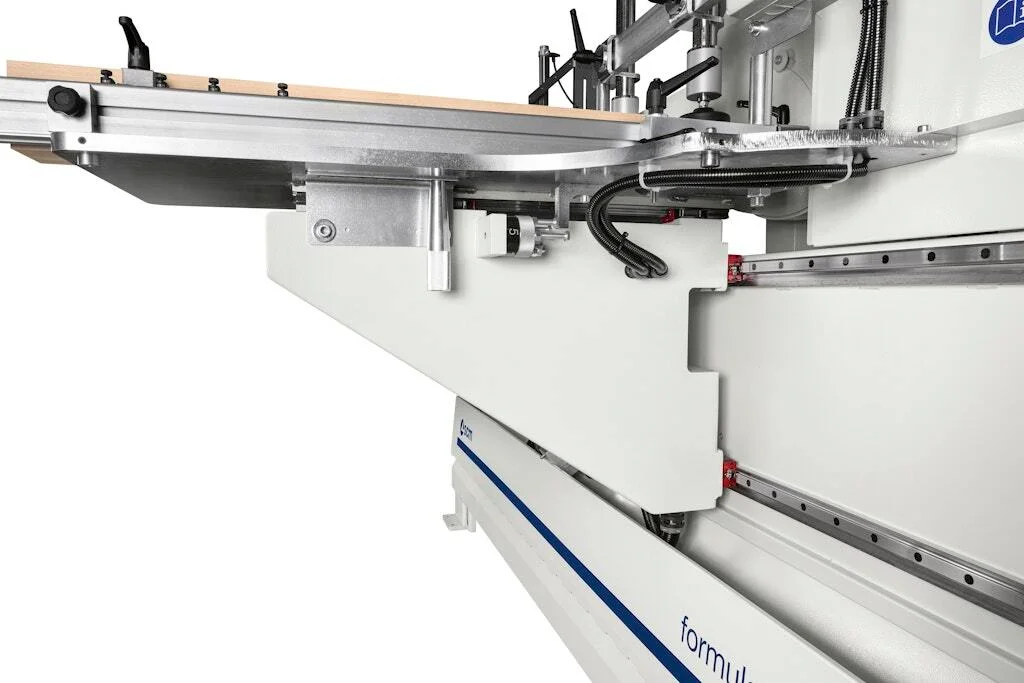

Work-piece support table

Worktable stroke towards the tool – 105mm

Worktable width – 400mm

Vertical pressers for pneumatic clamping – 2

Horizontal presser for pneumatic clamping – 1

Number of stops on revolver – 5
